NE SERIES Smart Transparent GLASS LED Display Window
Product introduction
Glass that behaves like media—without looking like hardware. NE SERIES Smart GLASS LED embeds our patented Integrated-IC and Nano-Circuit Technology directly inside high-density tempered glass. Installed indoors behind shopfront glazing or used as a façade component, it keeps natural light and sightlines while turning the surface into a high-resolution canvas.
What you get at a glance
- High transparency, high brightness: >86% VLT keeps interiors bright; up to 6,000 nits/m² stays readable in daylight—even through existing windows.
- Resolution to suit the view: pixel pitches 8–60 mm cover close-range retail to landmark towers.
- Behind-glass or replacement glass: the same panel works as a retrofit or as part of the building envelope.

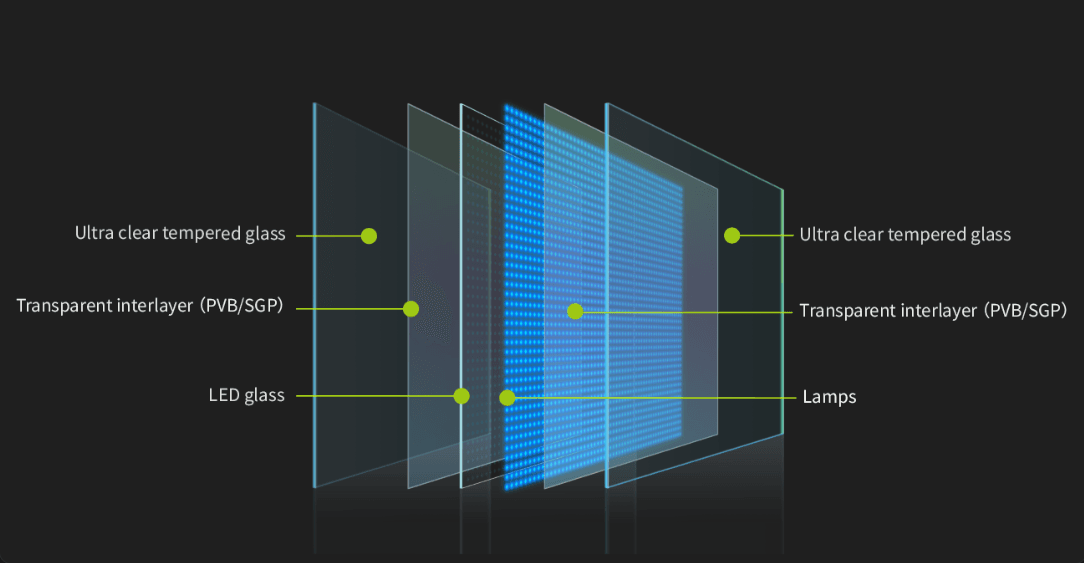

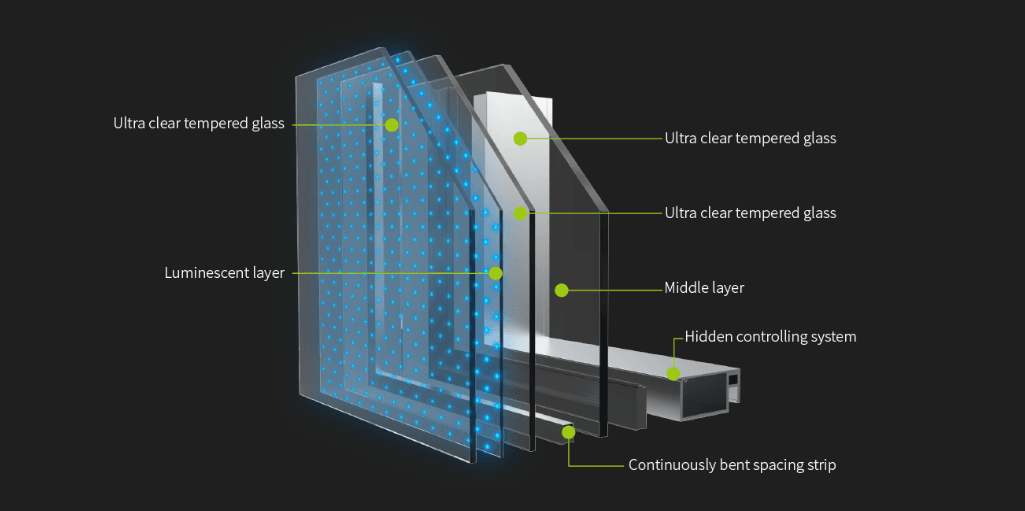

NE SERIES Smart Transparent GLASS LED Display structure Laminated glass

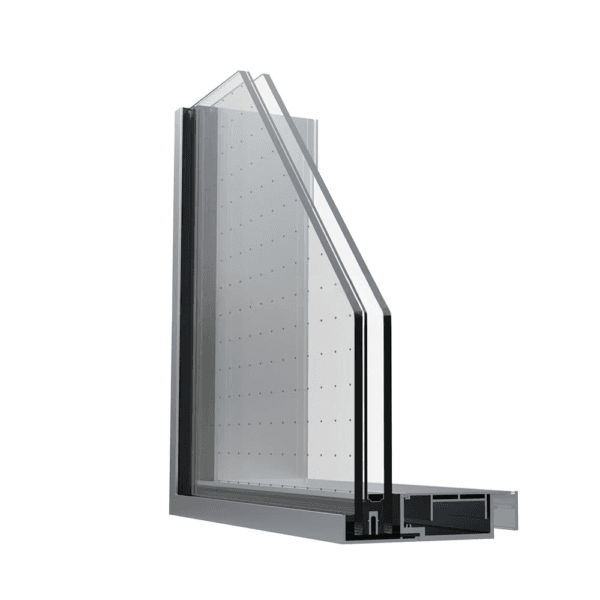

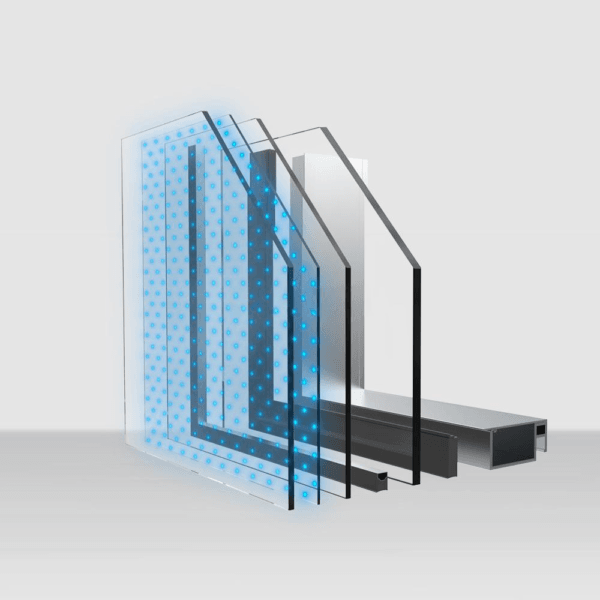

Insulating glass
Engineering that lasts

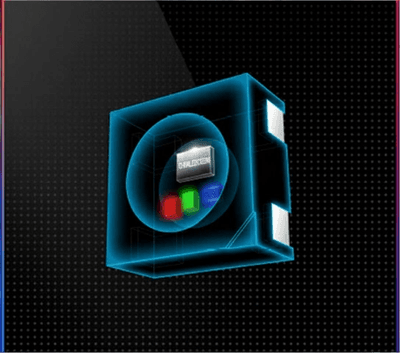

- Chip-in-glass architecture: LEDs and ICs are co-packaged for shorter paths, lower loss and superior uniformity.
- Energy-saving drive: efficient power management reduces heat and operating cost over time.
- Safety by construction: tempered glass ≈5× stronger than ordinary glass; nano materials resist high temperature and oxidation; dry lamination boosts adhesion and impact safety.
Sizes, shapes, and façade integrity

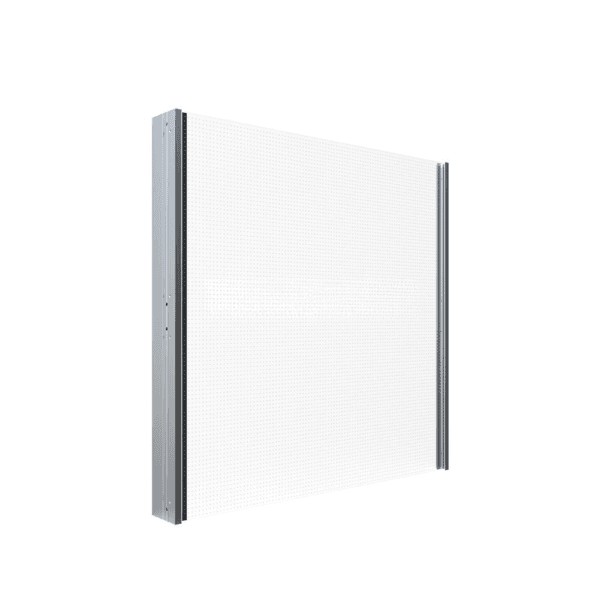

- Large modular panels preserve clean grid lines.
- Single panel limits: Short edge < 1,800 mm, Long edge < 4,500 mm
- Area limits: Standard < 3.6 m², Custom < 8 m²

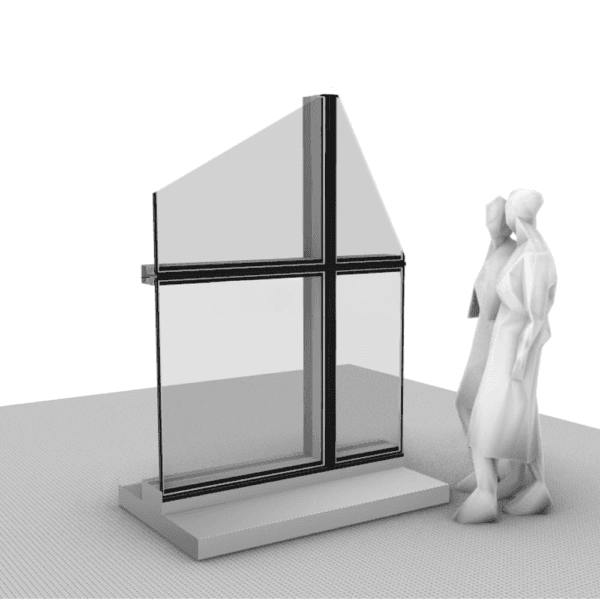

- Shaped glass for true integration: arcs, triangles, trapezoids, sectors, parallelograms, polygons—engineered to match your geometry.
More than a display
One surface delivers media display, architectural lighting and peripheral protection, redefining how buildings communicate. Expect crisp visuals, refined nighttime effects and a minimalist daytime aesthetic.
Proven application zones

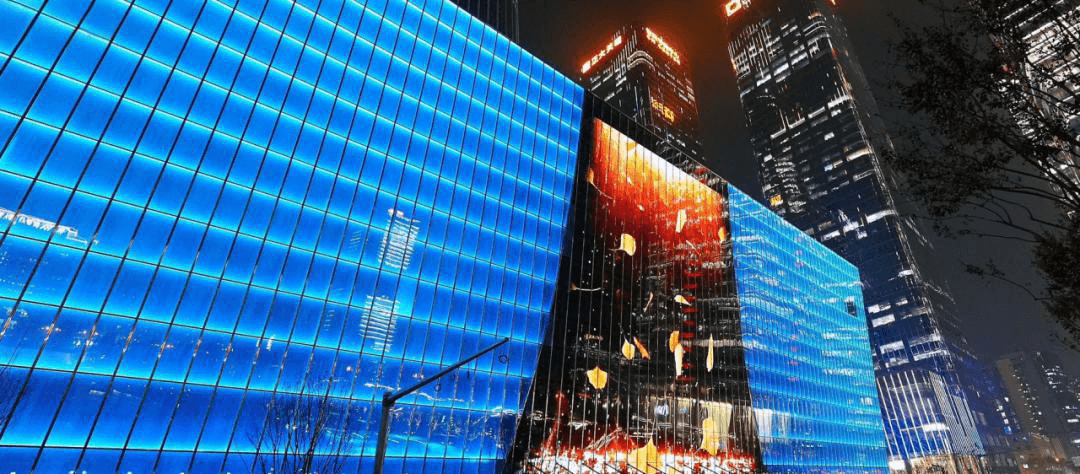

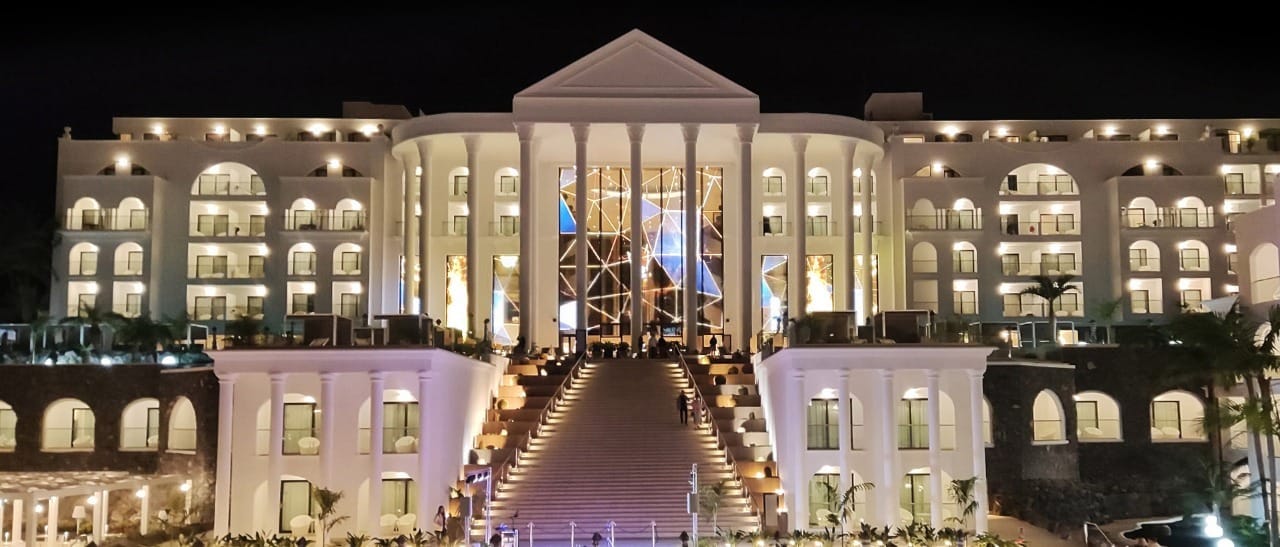

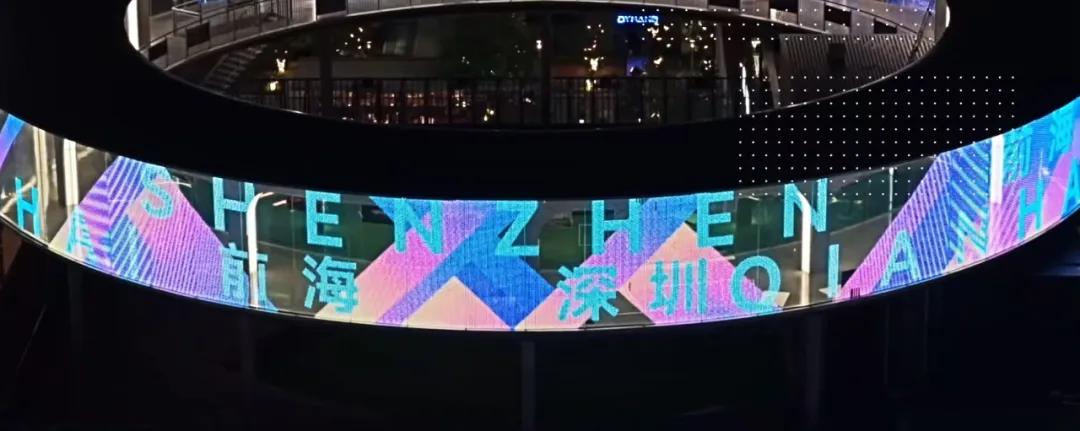

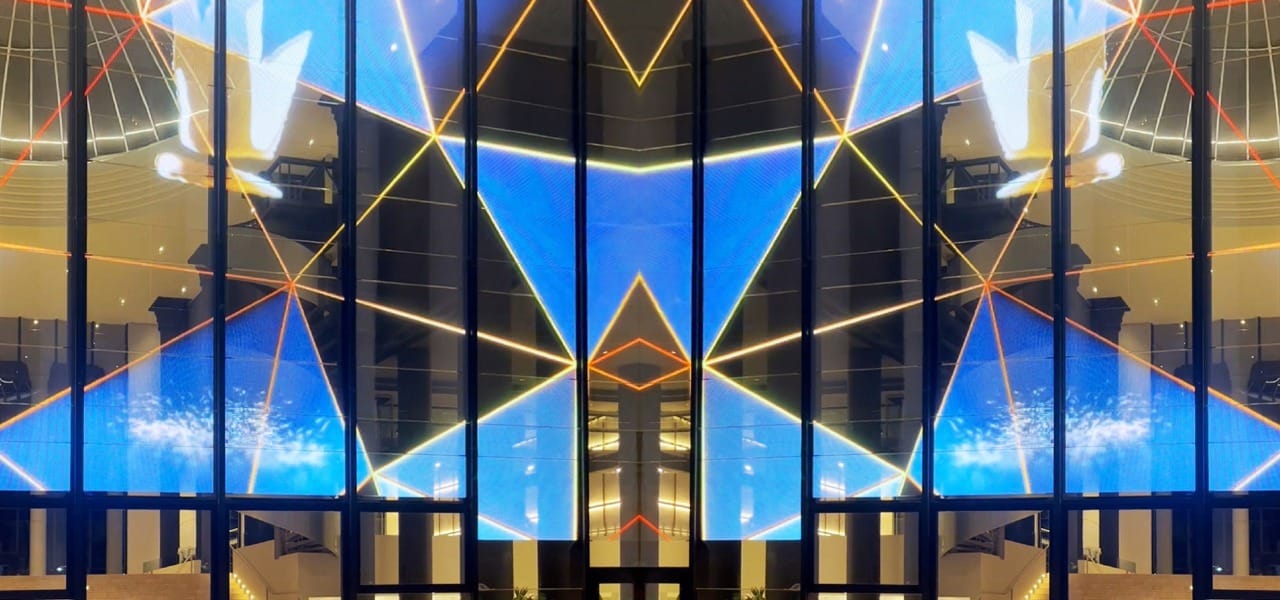

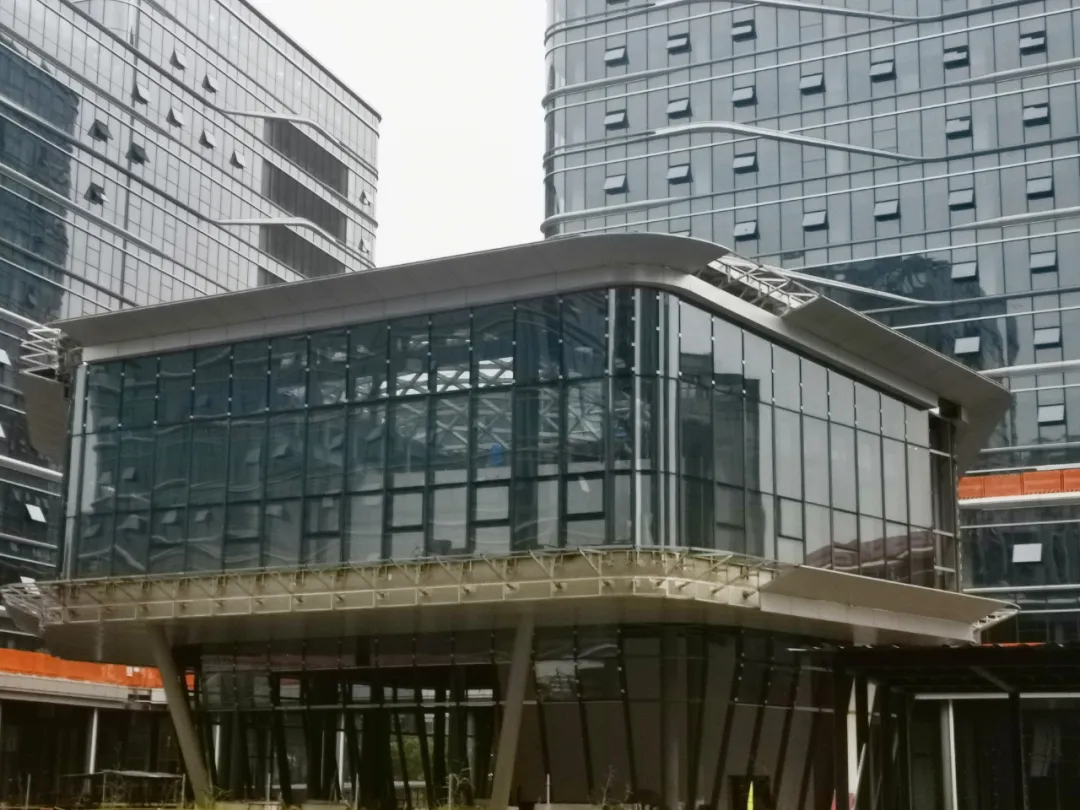

Building façades & curtain walls · Flagship retail windows · Elevator façades & atriums · Airports & rail hubs · Museums & cultural venues · Large commercial complexes
Why NE SERIES
A transparent, daylight-capable LED glass that respects architecture: bright when you need it, invisible when you don’t. Stable electronics, low power draw, and true customization make NE SERIES a high-end, future-ready choice for signature projects.
Specify yours Send glass sizes, viewing distance and install method (behind glass or replacement). We’ll return the ideal pitch/brightness, power budget and a clean panel map for a code-ready build.
Specification
FAQs
What is the core technology behind the NE Series Smart Glass LED Display?
The NE Series utilizes a patented technology that integrates high-density industrial tempered glass with Nano-Circuit Technology and embedded driver ICs. This innovative approach combines LED chips and integrated circuits directly into the glass substrate using nano-film circuits, effectively transforming standard architectural glass into a high-definition, smart video display without sacrificing the structural integrity or look of traditional glass.
How does the transparency level of the NE Series affect building aesthetics?
The NE Series is designed with an ultra-high transparency rate, typically ranging from 86% to over 90%. This high level of permeability ensures that the display remains almost invisible when viewed from a distance or when the screen is turned off. It allows natural light to pass through into the interior of the building and maintains the original architectural design and open lines of sight, unlike traditional solid LED screens that block views and light.
Can the NE Series display be seen clearly during the day?
Yes, the NE Series is engineered for superior visibility even in bright daylight conditions. It features a high brightness output that can reach up to 6000 nits per square meter. This intensity ensures that the content displayed—whether it is video, advertising, or architectural lighting—remains vivid, sharp, and eye-catching to outdoor audiences, even under direct sunlight.
What are the installation options for the NE Series Glass LED?
The NE Series offers versatile installation methods to suit different architectural needs. It can be installed indoors directly behind existing glass windows of building facades and storefronts, acting as a retrofit solution. Alternatively, it serves as a construction component where the smart glass panels replace the traditional glass entirely, functioning simultaneously as the building’s outer skin and a dynamic media wall.
What pixel pitch specifications are available for the NE Series?
To accommodate various viewing distances and resolution requirements, the NE Series is available in a wide range of pixel pitches, typically spanning from 8mm to 60mm (e.g., P10, P20, etc.). This flexibility allows clients to choose higher resolution options for close-up viewing applications like retail windows or larger pixel pitches for large-scale media facades on skyscrapers where the display is viewed from afar.
What are the primary applications for the NE Series Smart Glass LED Display?
The NE Series is widely used in diverse commercial and architectural settings. Its primary applications include building facades, architectural lighting for landmarks, retail store windows, glass balustrades, and elevator facades. It is also frequently deployed in transportation hubs such as airports and train stations, as well as in museums and large commercial spaces, to deliver brand messaging and artistic visual effects without obstructing the environment.
