Outdoor Mesh LED Display Screen Waterproof

Product introduction

A screen that breathes with the building. This waterproof mesh uses open-grid LED nodes so air, daylight and views pass through—while your façade becomes a dynamic canvas at night. The result: landmark visibility without heavy cabinets, blocked windows, or high wind load.

Why it outperforms conventional cabinets

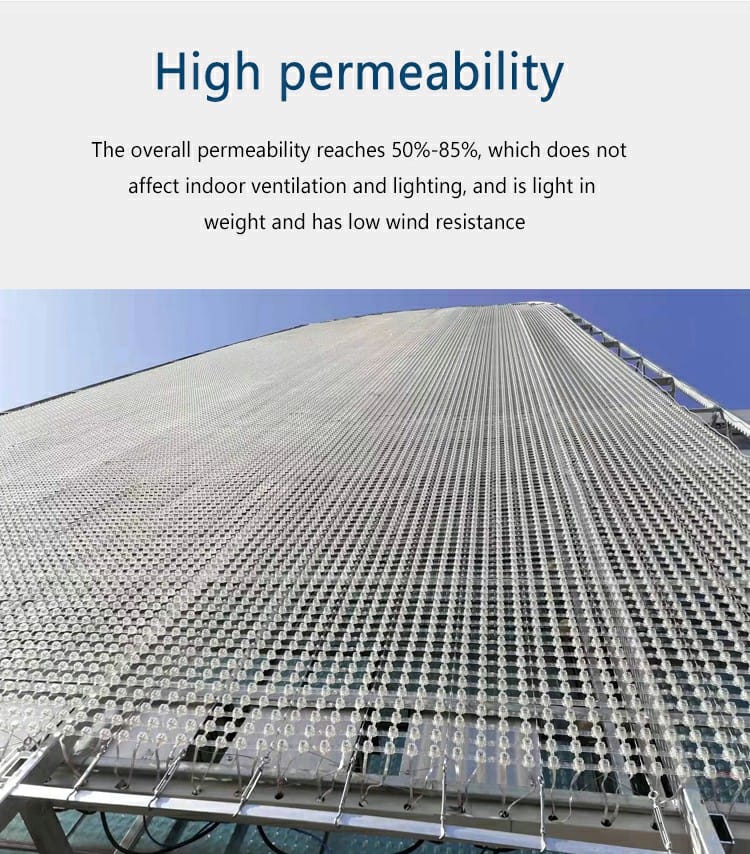

• High transparency: 50–90%+ openness keeps interiors bright and reduces wind resistance—ideal for glass curtain walls and towers.
• Ultra-light system: only 1.5–4.2 kg/m², requiring less steelwork and cutting hoist and labor costs (projects routinely see ~70% less construction effort).

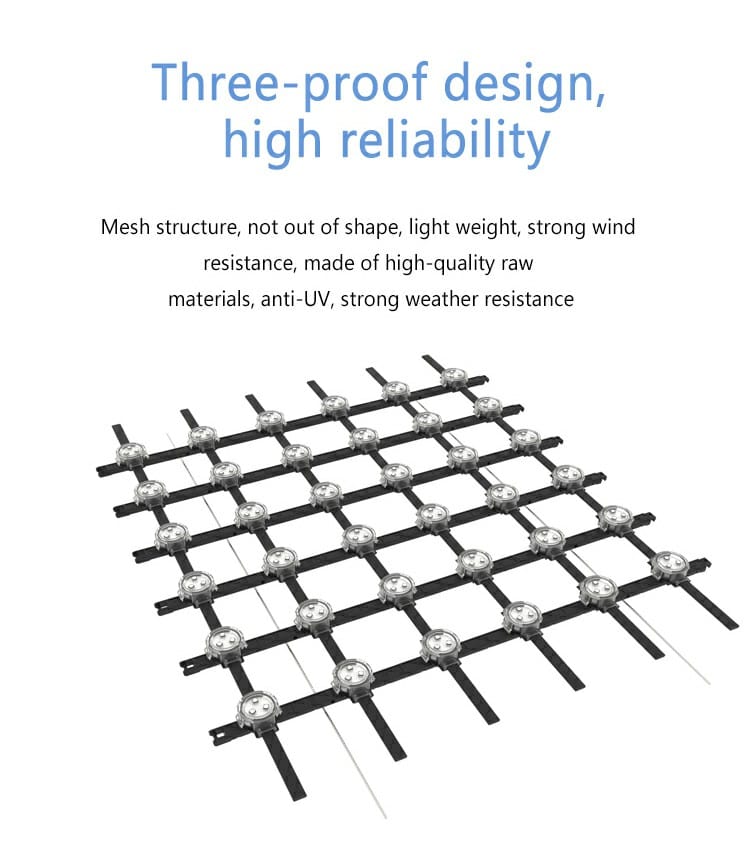

• Waterproof & cold-proof: high-IP protection, UV-stable materials, corrosion-resistant hardware; verified to operate even after ice-water tests.

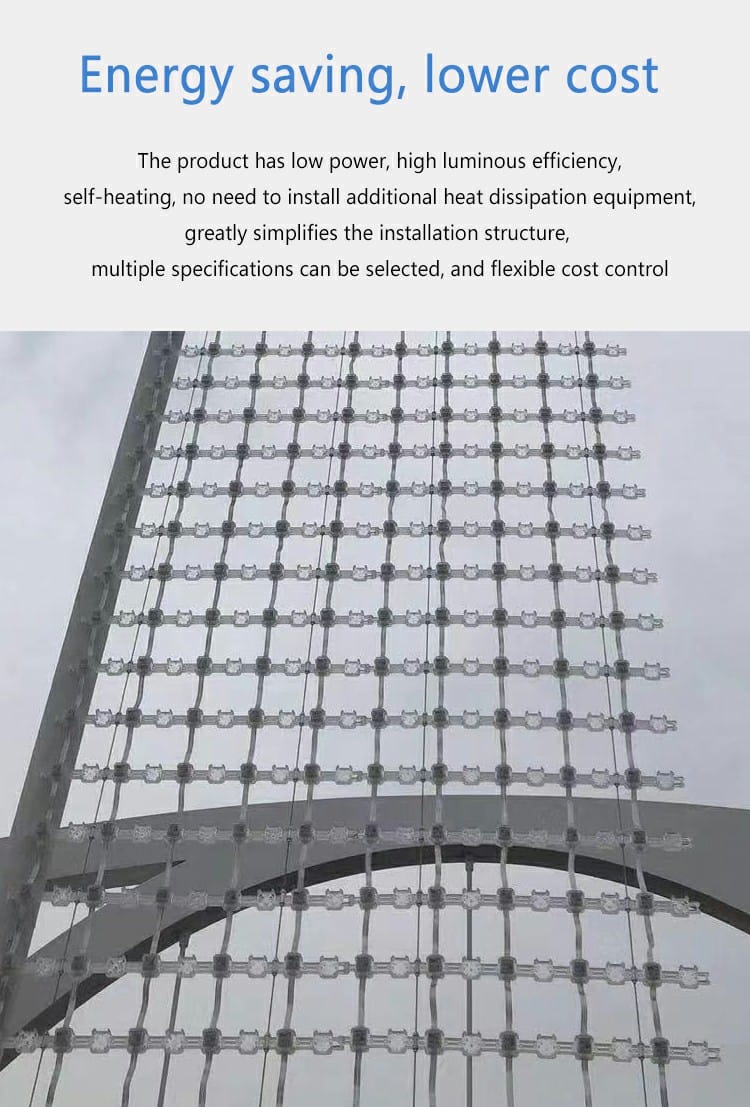

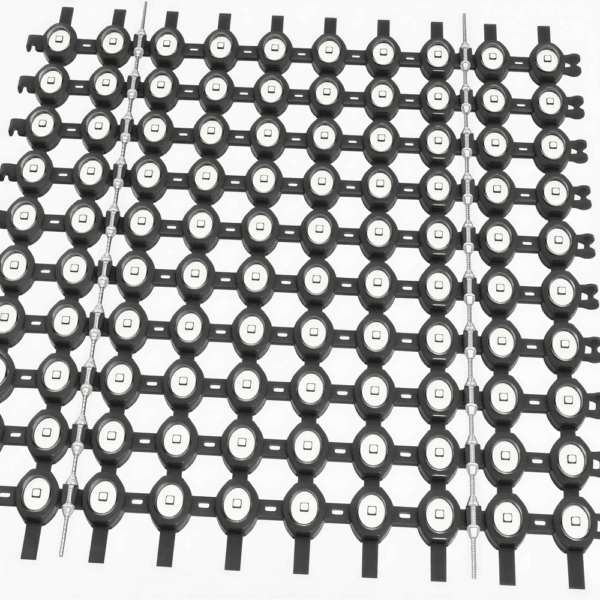

• Energy-saving optics: efficient drivers + natural convection cooling—no extra AC—mean lower power bills and simpler structure.
• Even, colorful output: imported LED chips deliver high luminous efficiency, low decay and flicker-free visuals for a long service life.
• Smart control: works with NovaStar class controllers and phone/Wi-Fi apps for playlists, schedules and on-site brightness.

Built for fast work on complex façades

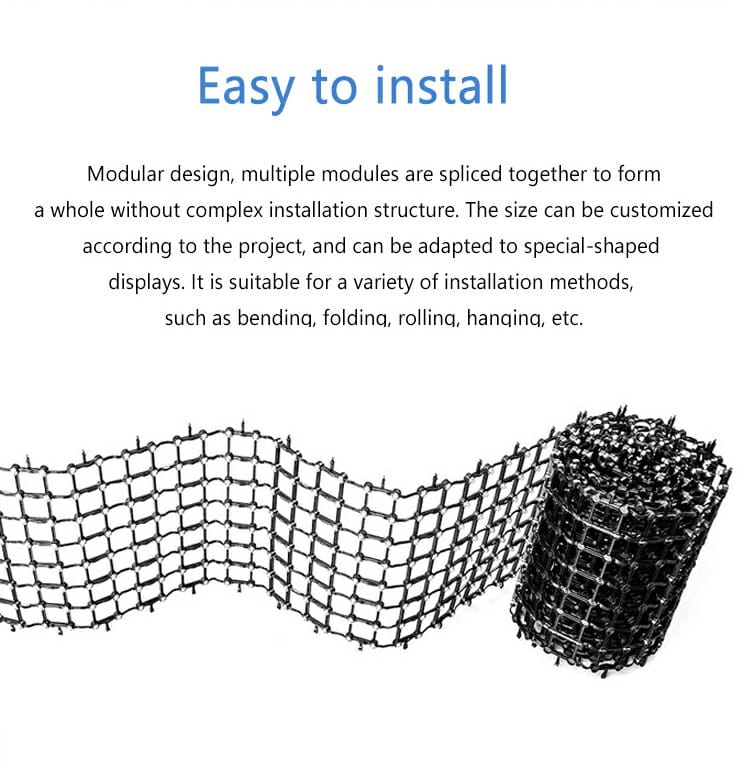

• Modular design: quick-lock tiles and string nodes plug together; size is customizable to your elevation.

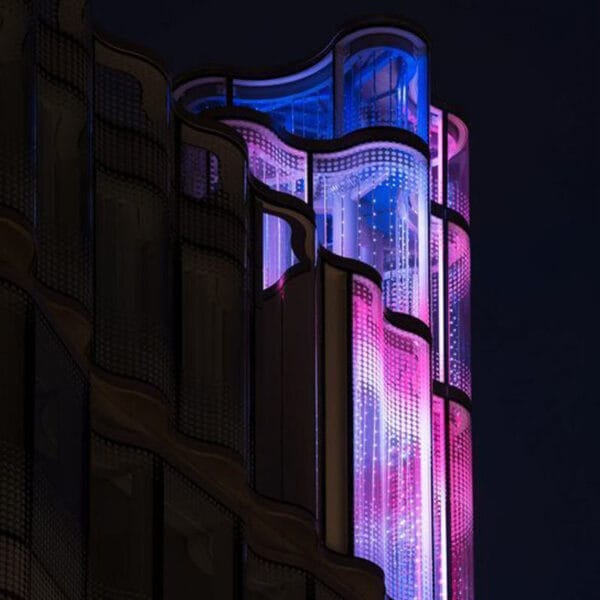

• Shape freedom: supports bending, folding, rolling, hanging and curved crowns—perfect for creative outlines and large atriums.
• Front service: break the repair barrier with front-access, single-dot maintenance to keep uptime high and OPEX low.

Performance snapshot (customizable)

• Pixel pitch: 30–160 mm (choose by viewing distance & transparency goal).
• Standard module: 8 × 100 dots (custom on request).
• Transparency: typically >60%, up to ~90%.
• Refresh: high-refresh, video-smooth playback.
• Installation: bendable strings/strips; fast-lock hardware; wall, suspension or frame mounting.

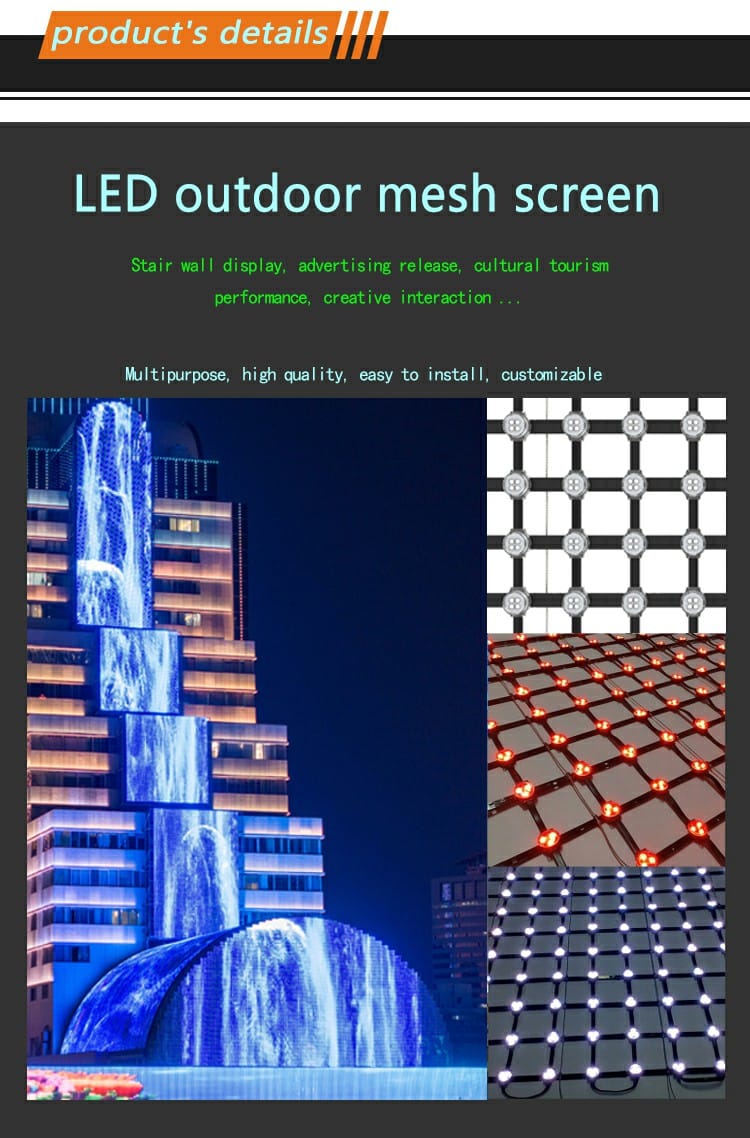

Where it excels

• Stair & wall displays in malls and transit hubs

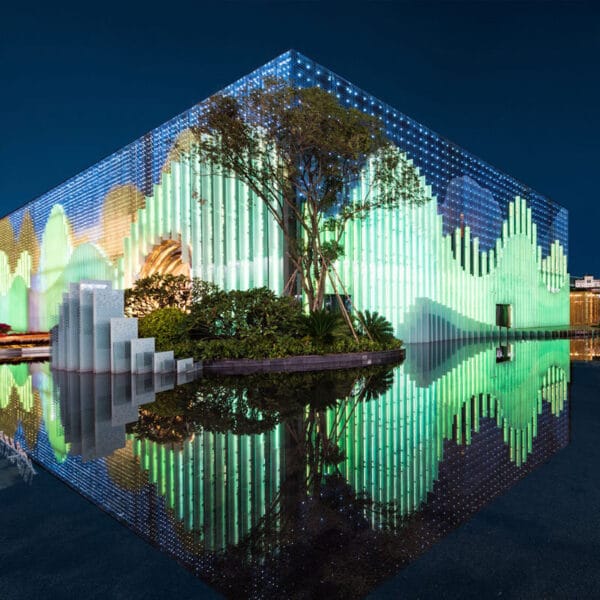

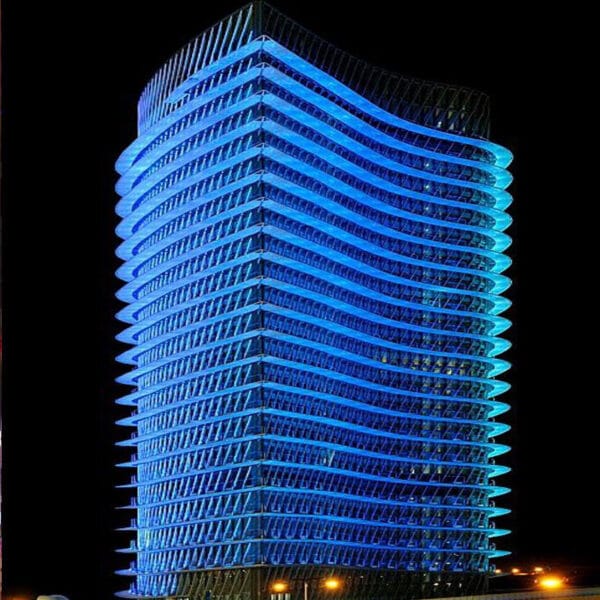

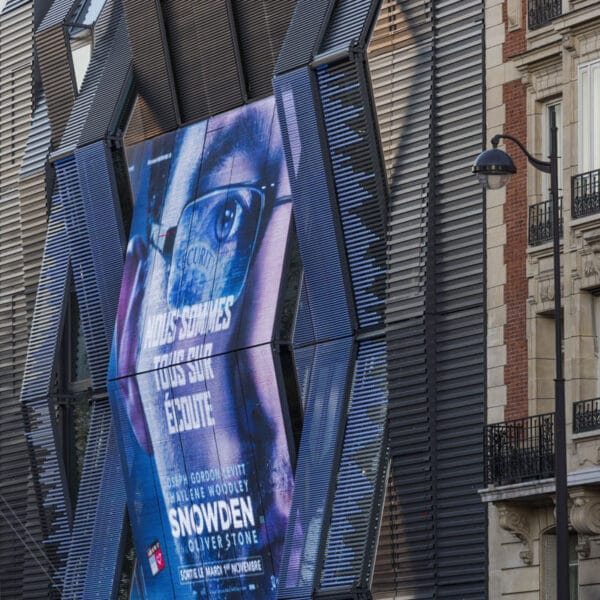

• Advertising façades on high-rise glass walls
• Cultural-tourism lighting and creative city landmarks
• Stadiums & plazas needing long-distance visibility
• Event/rental scenography that must rig fast and travel light

Selection guidance (quick)

• Far viewing (streets/skyline): wider pitch (P80–P160) → maximum transparency, lowest wind load.
• Mid viewing (plazas/malls): mid pitch (P40–P80) → balanced detail & openness.
• Closer viewing (balconies/foyers): tighter pitch (P30–P40) → sharper text and logos.
• Typhoon-prone sites: specify higher transparency and lighter modules to increase safety margins.

Why owners love it

Smarter energy use, fewer structural changes, faster installs, and easier maintenance—while delivering the creative freedom to curve, crown and outline buildings with living light.

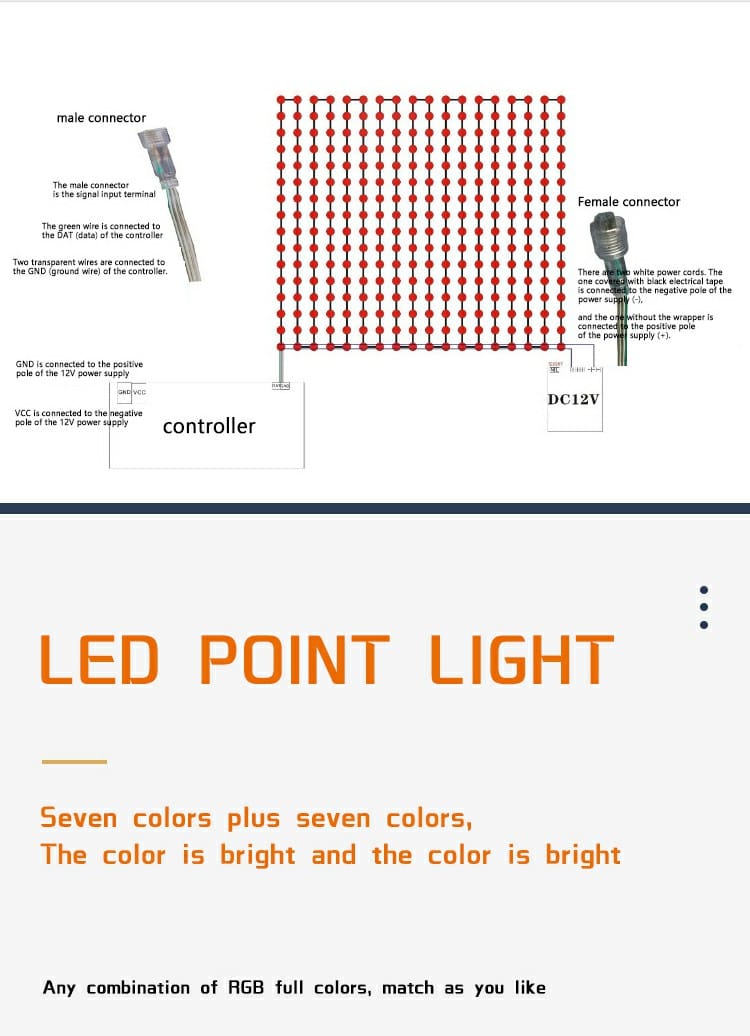

Send your elevation (DWG/PDF) with viewing distances and power/data entry points. We’ll return an optimized pitch & transparency plan, brightness target, wind-load notes, and a clean NovaStar wiring map tailored to your Outdoor LED Mesh Screen Waterproof project. your building.

FAQs

What characterizes the design and structure of the Outdoor Mesh LED Display?

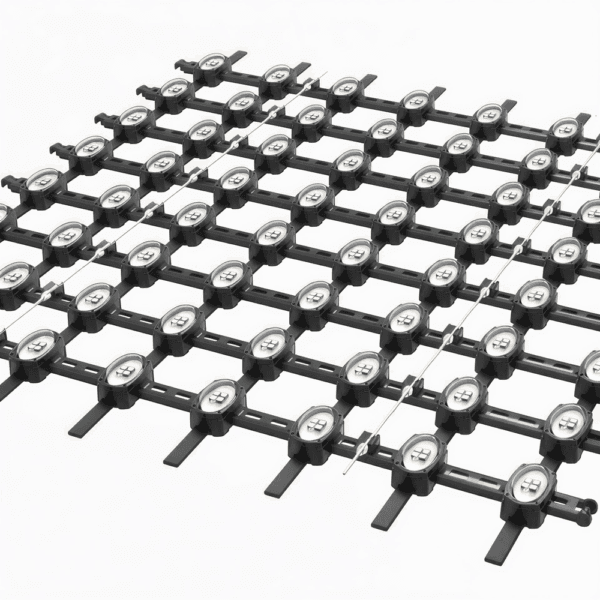

The Outdoor Mesh LED Display features a flexible, soft-module design that distinguishes it from traditional rigid LED cabinets. Its structure is composed of LED pixel strips connected by high-strength wire ropes or durable cabling, creating a net-like appearance. This unique “curtain” design allows the screen to be ultra-thin, pliable, and capable of adapting to various architectural shapes, including curved, round, or irregular building facades, without the need for heavy, complex steel frames.

How does the display handle harsh outdoor weather conditions?

This screen is engineered specifically for robust all-weather performance, boasting a high protection rating of IP67 for both the front and rear. This ensures the display is fully waterproof and dustproof, capable of resisting heavy rain and moisture. Additionally, the materials used are UV-resistant and fire-retardant, allowing the screen to operate stably under intense sunlight and extreme temperature fluctuations ranging from -40°C to +60°C.

What are the advantages of the screen’s transparency level?

The Outdoor Mesh LED Display typically offers a high transparency rate, ranging from 50% to 90%. This grid-like permeability allows sunlight to pass through the screen, ensuring that the interior lighting of the building is not blocked. Furthermore, the transparency significantly reduces wind load resistance, making the screen much safer and more stable for installation on high-altitude skyscrapers or in areas prone to strong winds.

Is the content visible under direct sunlight?

Yes, the display is equipped with high-brightness LED configurations, often reaching between 6,000 and 10,000 nits. This high intensity ensures that video content, commercial advertisements, and graphics remain sharp, vivid, and clearly visible to outdoor audiences even under strong, direct sunlight. The brightness levels can also be adjusted automatically or manually to suit day and night environments, preventing light pollution.

How does the lightweight nature of the screen benefit installation?

The Outdoor Mesh LED Display is exceptionally lightweight, often weighing significantly less per square meter compared to traditional outdoor screens (sometimes as low as 12kg/m²). This reduces the load-bearing requirements for the building structure and allows for a simplified installation process. The screen can often be installed using a hanging method with top and bottom beams, removing the need for massive, expensive steel support structures and reducing overall labor costs.

What are the primary application scenarios for this product?

Due to its flexibility, transparency, and large-scale scalability, the Outdoor Mesh LED Display is primarily used for media facades on landmark buildings, glass curtain walls of shopping malls, and large outdoor advertising surfaces. It is also frequently utilized for stage backgrounds and creative lighting projects where unique shapes or temporary setups are required, transforming static architectural surfaces into dynamic visual media walls.
