Smart Glass LED Screen Display Media Windows

Product introduction

Keep the building glass—then make it speak.
We laminate a micro-LED matrix inside safety glass to create a transparent media façade that looks like normal glazing when off and delivers vivid content when on. Each panel is glass + display + control box in one, so installers handle it like standard glass, not a bulky LED cabinet.

What makes it different (human-level details)

• High visual transparency: up to ~95% (model dependent) preserves daylight, views, and store aesthetics.

• Wide, comfortable viewing: 160° viewing angle keeps content readable across atriums and curved walls.

• Energy-saving by design: intelligent drivers and sparse light obstruction deliver ≈75% lower consumption than conventional LED cabinets—cooler, safer, greener.

• HD visuals & 3D playback: supports 3D videos, images, and text, with adjustable brightness for day/night scenes.

• Plug-and-play installation: male/female quick connectors, pre-mapped modules; set, connect, power, and play.

• Smart control options: publish via mobile app, PC software, or USB playlists with scheduling and scene presets.

• Built for façades now—and future: laminated/tempered options, IGU compatibility, custom sizes, radii, and tints to match the latest curtain-wall standards.

Benefits for designers, owners & operators

• Invisible by day, iconic by night: media without heavy steelwork or visible frames.

• Lightweight system: reduces structural load vs. traditional LED; easier approvals for glass refurbishments.

• Low maintenance, high reliability: sealed interlayer protects LEDs from dust and moisture; modular service from edges or mullions.

• Compliance-friendly: supports safety-glass norms and easy integration with BMS/lighting controls.

Typical specifications*

• Transparency: up to ~95%

• Viewing angle: ~160°

• Image quality: HD class (pixel pitch per project)

• Control: APP / PC / USB

• Formats: 2D & 3D video, images, text

• Installation: plug-and-play connectors; framed, point-fixed, or IGU systems
  *Values are typical; final configuration tailored to glass size, viewing distance, and environment.

Recommended applications

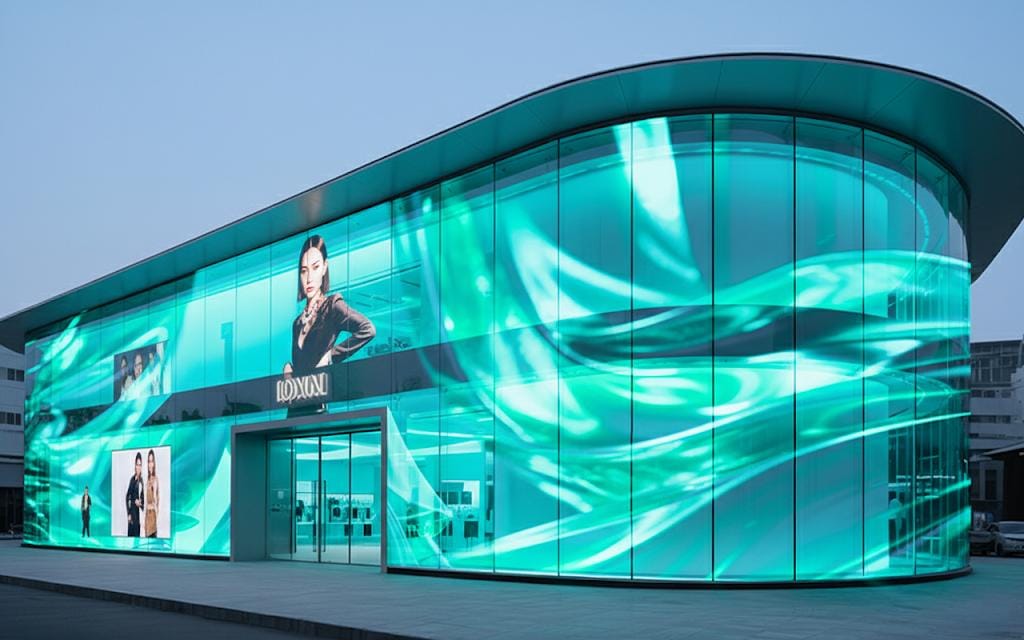

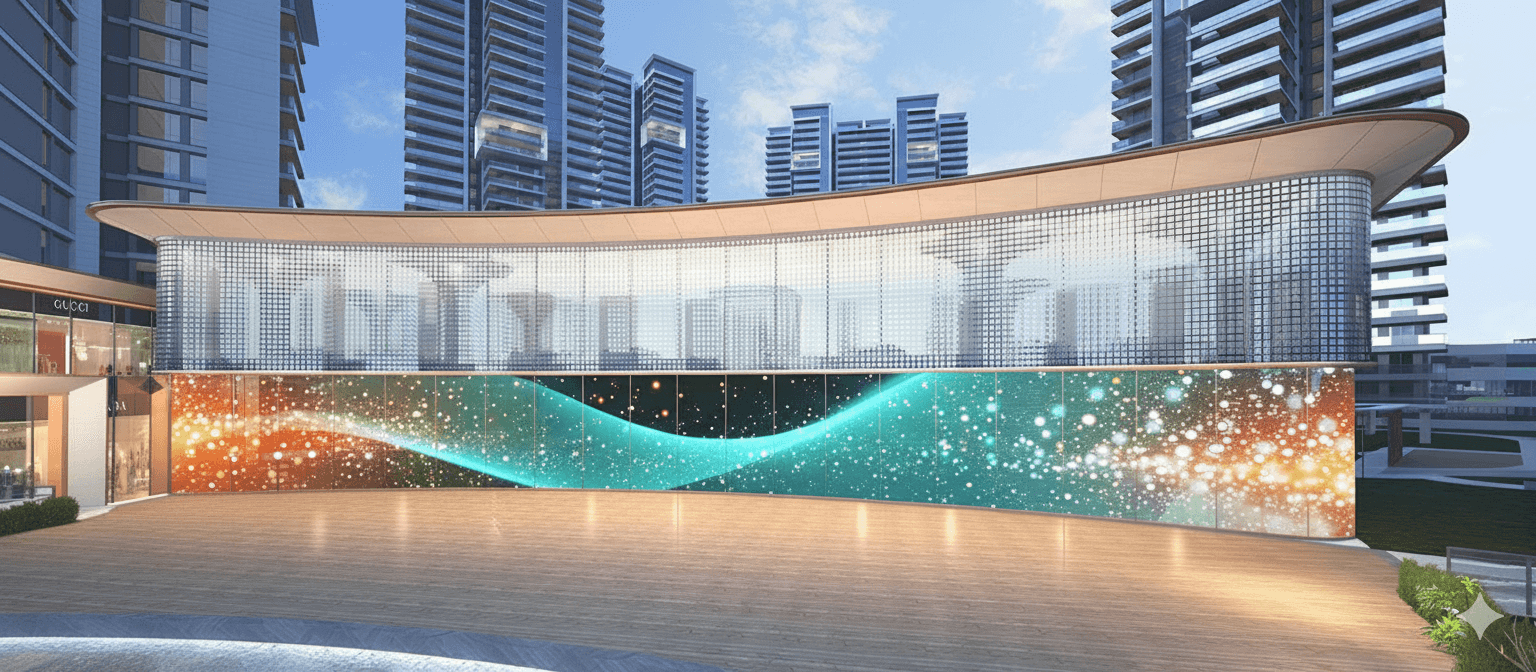

• Flagship retail windows and brand façades

• Corporate lobbies and glass atriums

• Museums, airports, transport hubs for wayfinding + media

• Hospitality & mixed-use projects seeking signature night scenes





Why ChinaLEDScreens

With 15+ years in transparent display engineering, we deliver factory-direct OEM/ODM across LED glass, transparent LED screens, LED film, flexible LED film, holographic LED, and mesh LED—from concept drawings to on-site commissioning.

Ready to design on glass? Share your glass sizes, curvature, viewing distance, and indoor/semi-outdoor conditions. We’ll propose pixel pitch, layout, control scheme, and an indicative lead time.

Smart Glass LED Screen Media Product Reference Specification

FAQs

What is the structural composition of the Smart LED Glass Screen?

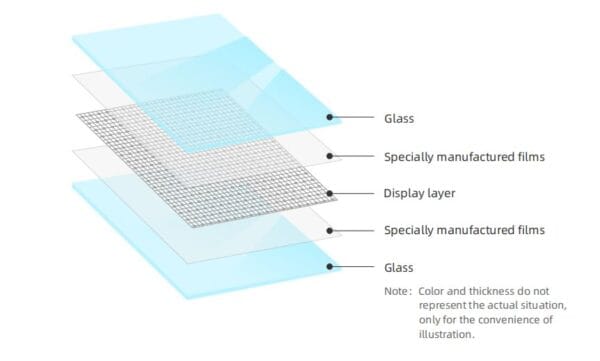

The Smart LED Glass Screen is a type of laminated architectural glass that integrates LED technology directly into the glass structure. It consists of a “sandwich” configuration where a layer of light-emitting diodes (LEDs) and a transparent conductive layer are encapsulated between two sheets of high-strength industrial tempered glass. This design transforms traditional building glass into a durable, video-capable display while maintaining the structural integrity and safety features of standard architectural glass.

How does the transparency of the Smart LED Glass compare to traditional screens?

This product offers exceptional transparency, typically boasting a permeability rate of up to 99% when the screen is turned off. Unlike traditional LED screens that use visible frames or keels, the Smart LED Glass utilizes advanced transparent conductive technology (often using nano-coating or invisible circuits) which eliminates the need for opaque wires or structural bars. This ensures that the glass remains clear and visually unobstructed, allowing for perfect integration into building facades and windows.

Is the Smart LED Glass Display suitable for outdoor environments?

Yes, the Smart LED Glass is engineered specifically to withstand harsh outdoor conditions. Because the LEDs and circuits are fully laminated within the glass, the display is inherently waterproof, dustproof, and moisture-resistant, typically achieving high IP ratings (such as IP65 or higher). It also possesses the physical durability of tempered glass, making it resistant to impact, wind loads, and UV radiation, ensuring stable operation in varying climates.

Can this display serve as a structural building material?

Unlike standard LED screens that are attached to a building, the Smart LED Glass is designed to be the building material. It can replace traditional glass in construction, serving as the actual curtain wall, glass railing, or partition. This dual functionality reduces construction costs and complexity by combining the facade material and the media display into a single solution, without the need for additional steel support structures or heavy external frames.

What are the brightness capabilities for daytime viewing?

The Smart LED Glass Screen is equipped with high-brightness LEDs, capable of reaching output levels of 5,000 nits or more. This high intensity ensures that the displayed content—whether it is commercial advertising, artistic graphics, or architectural lighting—remains vivid and clearly visible even under direct sunlight. The brightness is also adjustable, allowing it to be dimmed for nighttime use to prevent light pollution.

What are the typical applications for Smart LED Glass Screens?

Due to its combination of transparency, durability, and aesthetics, this product is widely used in high-end architectural projects. Common applications include outdoor glass curtain walls for skyscrapers, shopping mall facades, glass balustrades (railings) on bridges or mezzanines, sightseeing elevators, and partitions in transportation hubs like airports and railway stations. It allows buildings to dynamically display content without compromising the clean, modern look of glass architecture.
