Outdoor Transparent LED Screen Waterproof

Outdoor Transparent LED Display — Waterproof

Keep the view. Add the wow.
Your glass stays open and bright; your messages land in full daylight.

What a seasoned installer would tell you

You paid for glass to welcome people, not hide them. This system makes the window work harder—campaigns outside, open feel inside. Every LED bar is sealed to IP65, so rain, dust, and accidental bumps don’t become service tickets. Daylight legibility outside; bright, comfortable ambience inside. Architecture stays architecture.

Why it wins (marketing outcomes + engineering sanity)

• See-through that sells — 53–85% transparency with ≥4,500–5,500 cd/㎡. Reads in sun, feels premium at night.

• No heavy steel — 1000×500 mm panels (~7.5 kg/㎡) tie into curtain-wall mullions. Keep retail space and sightlines.

• True outdoor build — Encapsulated LEDs, sealed power/signal paths. IP65 end-to-end.

• Lower lifetime cost — Open grid vents heat naturally; most sites skip extra HVAC (save CAPEX + OPEX).

• Fast to deploy, simple to service — Stack or hang. Front/rear access with modular spares = short downtimes.

• Camera-clean — 3,840 Hz refresh prevents phone/broadcast flicker.

Models at a glance (specs you can trust)

• PH3-7 — 3.9×7.8 mm, 53% transparency, 32,768 px/㎡, cab 256×64, 1000×500 mm, 3,840 Hz, 1/8 scan, SMD1921, ≥4,500 cd/㎡

• PH5-10 — 5.2×10.4 mm, 58% transparency, 18,432 px/㎡, cab 192×48, 1000×500 mm, 3,840 Hz, 1/4 scan, SMD1921, ≥4,500 cd/㎡

• PH10 — 10.42×10.42 mm, 58% transparency, 9,216 px/㎡, cab 96×48, 1000×500 mm, 3,840 Hz, 1/2 scan, SMD1921, ≥4,500 cd/㎡

• PH15-15 — 15.6×15.6 mm, 71% transparency, 4,096 px/㎡, cab 64×32, 1000×500 mm, 3,840 Hz, static, SMD2727, ≥5,500 cd/㎡

All specs typical. Final configuration depends on glass size, viewing distance, and sun exposure.

Content that wins on glass (field-tested)

• Do: big type, high contrast, solid logos, clean shapes, short copy, motion that reads in 1–2 seconds.

• Avoid: hairline fonts, fine textures behind text, tiny legal lines on busy footage.

• Brightness plan: Day 80–100% (sun/directional), dusk 40–60%, night 20–35% with a soft ramp after sunset.

• Creative tip: Keep product shots large and central; let real-world background show through for a premium feel.

Smooth install playbook (the calm jobs follow this)

1. Site survey — mullion spacing, cable routes, control location, sun path, service access.

2. Cabinet map — build the 1000×500 mm grid, confirm service side, plan power/data home runs.

3. Mounting — bracket to mullions, weather-seal penetrations, mock one bay before full run.

4. Power & control — label lines, test refresh/latency, load day/evening brightness profiles.

5. Handover — content templates, weekly loop schedule, spares kit, quick maintenance checklist.

Questions you’ll get (and the straight answers)

• “Will it make the showroom darker?” No—53–71% transparency keeps daylight and sightlines.

• “Is it okay in rain and dust?” Yes—IP65 sealed LEDs and paths. Designed for outdoor façades.

• “Can we service from inside?” If street access is tight, specify front-service from day one.

• “Will phones show flicker?” No—3,840 Hz playback prevents banding in typical recordings.

• “What about energy?” Natural venting + scheduled dimming reduces real-world consumption.

What we need to size it right (3 quick inputs)

• Glass width × height

• Typical viewing distance

• Whether the façade gets direct sun

We’ll return a recommended pitch, cabinet layout, power budget, and a day/night brightness plan tailored to your site.

FAQs

How does the Outdoor Transparent LED Screen withstand harsh weather conditions?

The Outdoor Transparent LED Screen is engineered with a robust IP65 protection rating, ensuring it is fully waterproof and dustproof. This durability allows the screen to operate stably in various outdoor environments, resisting rain and moisture. Additionally, its grille or strip-based structure is designed to be windproof, significantly reducing wind load resistance compared to solid screens, making it safe for installation on high-rise building facades.

What advantages does the transparency level offer for outdoor installations?

This screen series typically offers a transparency range between 40% and 70%. This high permeability serves two critical functions: functionally, it allows wind to pass through the screen, which reduces structural stress and the need for heavy reinforcement; aesthetically, it ensures that natural light can still enter the building interior and that the screen does not completely block the view from inside, maintaining the architectural appearance.

Is the display content visible under direct sunlight?

Yes, the Outdoor Transparent LED Screen is designed for superior daylight visibility. It features high-brightness LED configurations, often reaching between 5,000 and 8,000 nits (cd/m²). This high intensity ensures that video content, advertisements, and graphics remain sharp, vivid, and clearly visible to audiences even under strong, direct sunlight, maximizing the commercial value of the media facade.

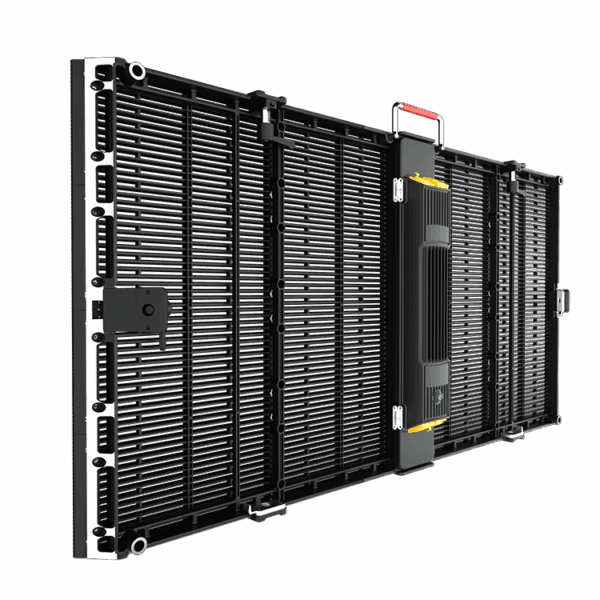

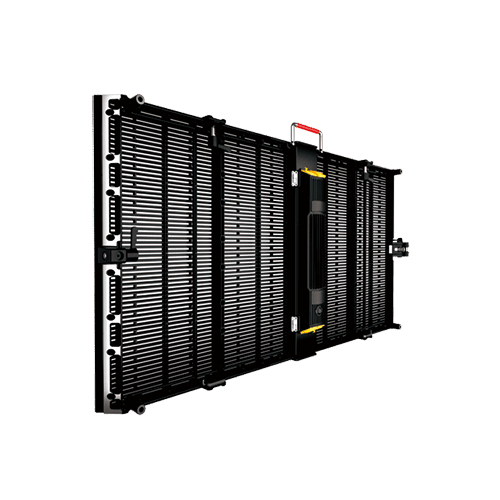

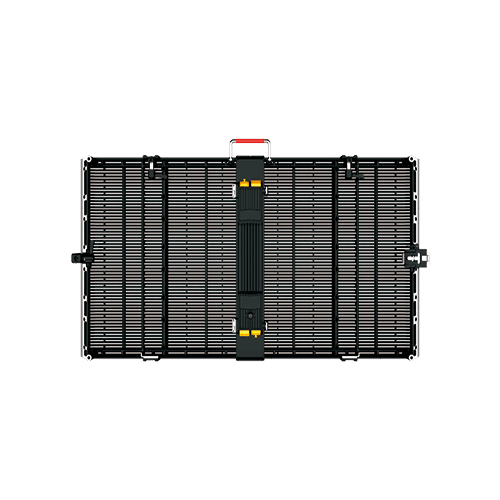

What are the structural benefits of the screen’s cabinet design?

The cabinets are constructed using lightweight materials, such as die-cast aluminum, resulting in a unit weight that is significantly lower than traditional outdoor LED displays (often around 15kg/m²). This lightweight and ultra-thin design reduces the load-bearing requirements for the installation wall, simplifies the steel structure needed for mounting, and makes the installation process faster and more cost-effective.

How is the maintenance of the screen performed?

To accommodate different installation environments, the Outdoor Transparent LED Screen supports flexible maintenance options. It is typically designed for both front and rear maintenance. This versatility allows technicians to access and service the modules from the front (ideal for wall-mounted installations) or the back (suitable for installations with rear access platforms), ensuring convenient and quick repairs.

Does the screen require an external cooling system?

Due to its unique hollow strip or grille design, the screen possesses excellent natural heat dissipation properties. Air flows freely through the gaps in the display, which helps keep the components cool without the need for traditional heavy air conditioning systems. This self-cooling capability, combined with efficient power management, contributes to lower energy consumption and an environmentally friendly operation.

Outdoor Transparent LED Display Reference Specification
