COB Transparent LED Screen for Vehicles Car Bus Window

At ChinaLEDScreens, we see this product as a very practical direction for mobile advertising, fleet branding, and vehicle digital signage. It combines the advantages of a COB transparent LED film screen, vehicle-friendly power design, and reliable cloud-based control, making it suitable for commercial cars, buses, taxis, shuttle fleets, and transport media projects.

Why COB Holoview Is a Strong Vehicle LED Window Solution

Compared with ordinary transparent display solutions, the COB Holoview series is optimized for real vehicle operating conditions. It is built around the core needs of mobile glass display projects:

• Higher brightness for clear visibility during day and night
• Lower power consumption for vehicle-friendly operation
• Low attenuation for better long-term image stability
• Higher transparency to reduce impact on rear visibility
• More reliable COB structure with a lower failure rate
• Better heat dissipation for long operating hours
• Lower moisture absorption rate to improve stability in humid conditions
• Wear-resistant and bump-resistant design for vehicle use
• High and low temperature resistance for changing outdoor environments

This makes the COB Holoview series more suitable for moving vehicles than many conventional glass display solutions.

Designed for Car Rear Windows and Bus Windows

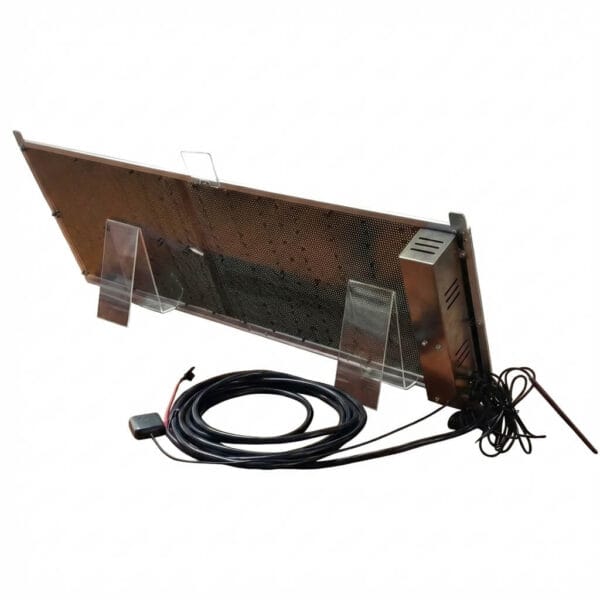

One of the biggest strengths of this product is that it is specifically suitable for vehicle rear window applications. The screen is flexible enough to match the shape of the rear window and is engineered for a cleaner installation approach.

With around 70% transparency, the display is designed so it does not significantly affect rear visibility or reversing safety. For commercial vehicle projects, this is an important balance between advertising performance and safe operation.

The supplied configuration also supports black screen when reversing, which is a very practical function for automotive use.

High Brightness for Day and Night Advertising

For vehicle advertising, brightness is critical. If the screen cannot compete with daylight, the media value drops quickly.

The COB Holoview Transparent LED Screen is designed to remain clearly visible during both daytime and nighttime, with brightness above 5000 nits based on your supplied product features. This makes it suitable for:

• Moving vehicle advertising
• Fleet branding
• Promotional campaign vehicles
• Shuttle bus media
• Taxi rear window digital signage
• Urban transport advertising

For clients comparing technologies, this product sits naturally alongside our transparent flexible LED film screen solutions, especially where high brightness and stronger durability are required.

Lower Power Consumption and Easier Vehicle Integration

A key advantage of this model is that it is designed for low-power vehicle use. Your supplied product features indicate:

• Weight under 1.5kg
• Power consumption under 130W

That combination is very important for car and bus window projects, because it helps reduce strain on the vehicle and simplifies installation planning.

Another practical advantage is that the system can take power directly from the vehicle lighter / power plug, meaning there is no need to change the original electrical structure of the vehicle. For fleet operators and project installers, this can reduce installation complexity, lower risk, and make pilot deployment much easier.

Better Reliability for Real Driving Conditions

Vehicle displays face very different challenges compared with fixed architectural screens. They must handle:

• Continuous vibration
• Road shock
• Rapid temperature changes
• Moisture and fogging conditions
• Condensation on glass
• Frequent daily use

That is why the COB HoloView P3.125 configuration is especially important. Based on your updated specification and feature notes, this model performs well in shockproof vehicle conditions and is also better suited to deal with fog and condensation humidity issues. This is a major practical advantage for rear-window installations where reliability matters more than just showroom appearance.

COB packaging also helps improve durability, heat dissipation, and resistance to external impact. For vehicle projects, that means a more stable screen and a lower risk of pixel failure over time.

To learn more about how ChinaLEDScreens approaches process stability and display engineering, you can also visit our technology and quality page.

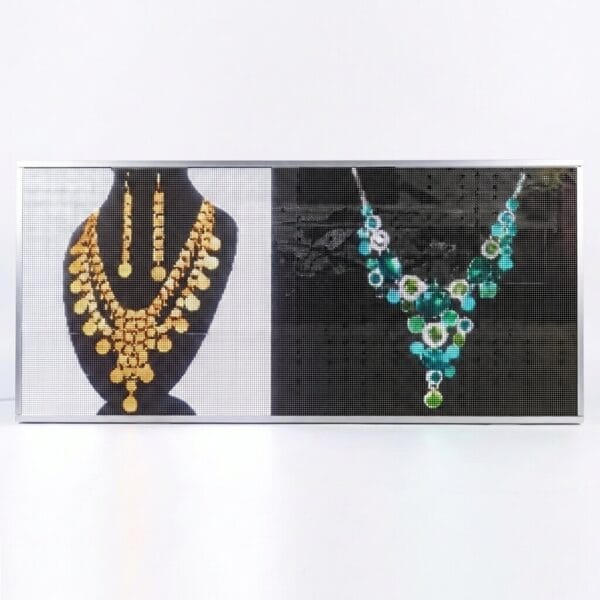

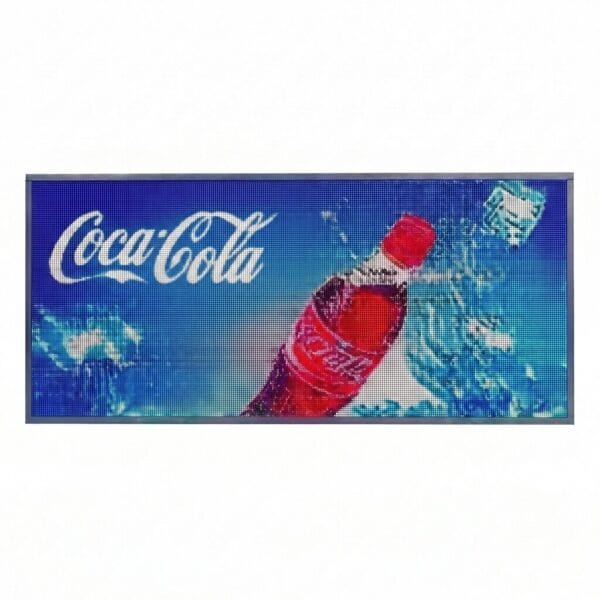

Key Technical Highlights of the COB Holoview P3.125 Reference Model

Based on the updated specification file, the COB Holoview P3.125 Car Rear Window Transparent LED Film includes the following key technical points:

LED and Display Structure

• Pixel pitch: P3.125
• Pixel structure: COB 3-in-1
• Configuration: 1R1G1B
• Pixel density: 102,400/m²
• LED chip: RGB large-size flip chip

Display Size

• Active display area: 850mm × 375mm
• Overall outline size: 875mm × 395mm
• Resolution: 272 × 120
• Total pixels: 32,640

Vehicle Control and Communication

• Control method: Asynchronous
• Communication: 4G / Wi-Fi / USB
• Platform: Cloud
• Location module: GPS
• Storage: 8GB (4GB available)
• Brightness control: Manual / Timer
• 2nd development: Available

Power and Operation

• Power input: DC 9–20V
• Lifespan: More than 50,000 hours
• Installation: Adhesive or structure support

These features make it a practical solution for fleet management, centrally controlled advertising, and scalable vehicle media networks.

4G Centralized Fleet Control

One of the most commercially valuable functions of this product is 4G centralized control. Instead of treating each vehicle as a separate offline screen, operators can manage multiple units more efficiently through a cloud-based control approach.

This is useful for:

• Bus advertising fleets
• Taxi media networks
• Delivery fleet branding
• Franchise or chain-store mobile campaigns
• Event roadshow vehicles
• Smart city transport media

With 4G, Wi-Fi, USB, GPS, and cloud support, the product is not only a display screen, but also a scalable vehicle media management terminal.

Better Heat Dissipation and Lower Moisture Absorption

For transparent LED screens on vehicle windows, thermal stability and moisture resistance are often underestimated. In real projects, these two factors directly affect lifespan and failure rate.

The COB Holoview series is positioned around:

• Better heat dissipation
• Lower moisture absorption
• Higher reliability
• Lower failure rate

This is especially relevant for vehicles operating in humid, rainy, cold, or high-temperature environments. In practical terms, it helps improve long-term stability and reduce maintenance risk.

If your project also involves film-style installation and curved glass adaptation, our adhesive LED film screen solutions may also be useful to compare.

Typical Applications

The COB Holoview Transparent LED Screen is suitable for a wide range of vehicle display applications, including:

• Car rear window advertising
• Bus rear window digital signage
• Shuttle bus window branding
• Taxi media displays
• Promotional vehicle campaigns
• Fleet-based mobile advertising
• Smart transport media projects

It can also complement broader display strategies in transport environments, where digital media is part of a larger branding or passenger-information system. You can explore more project inspiration through our transparent LED screen case studies.

COB Holoview Transparent LED Screen Product videos

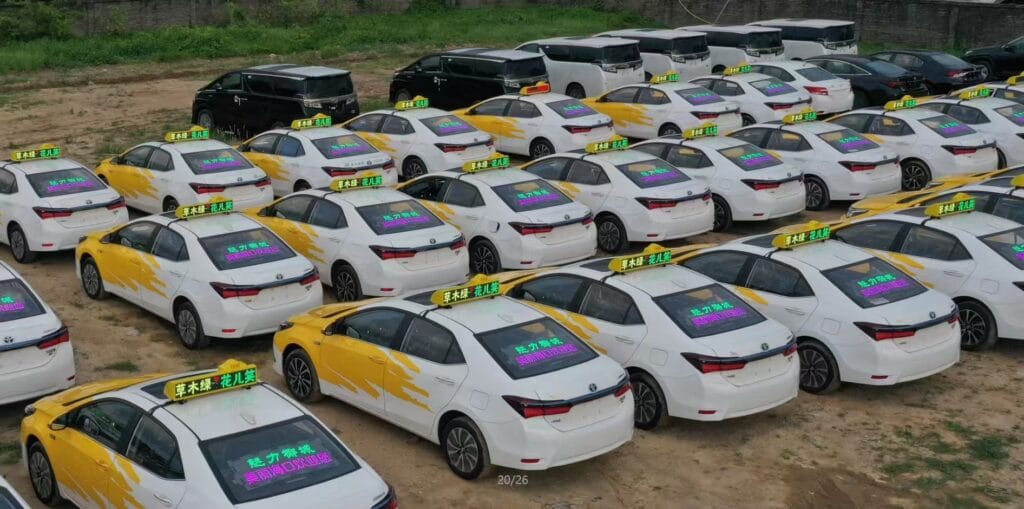

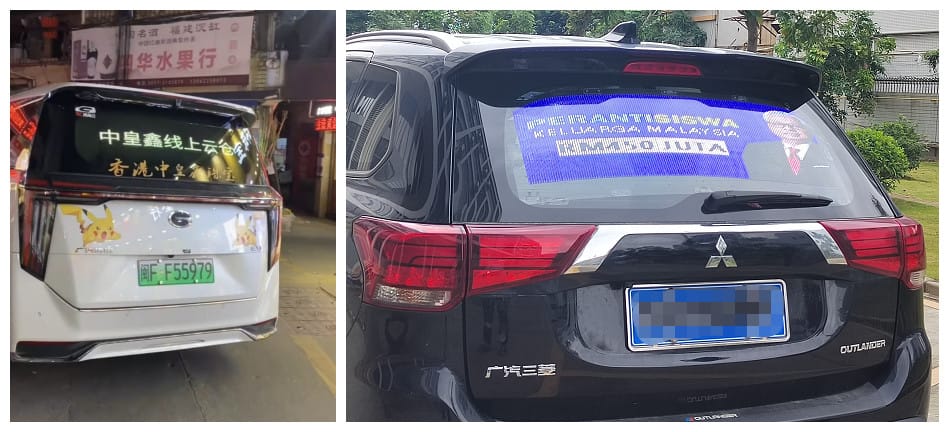

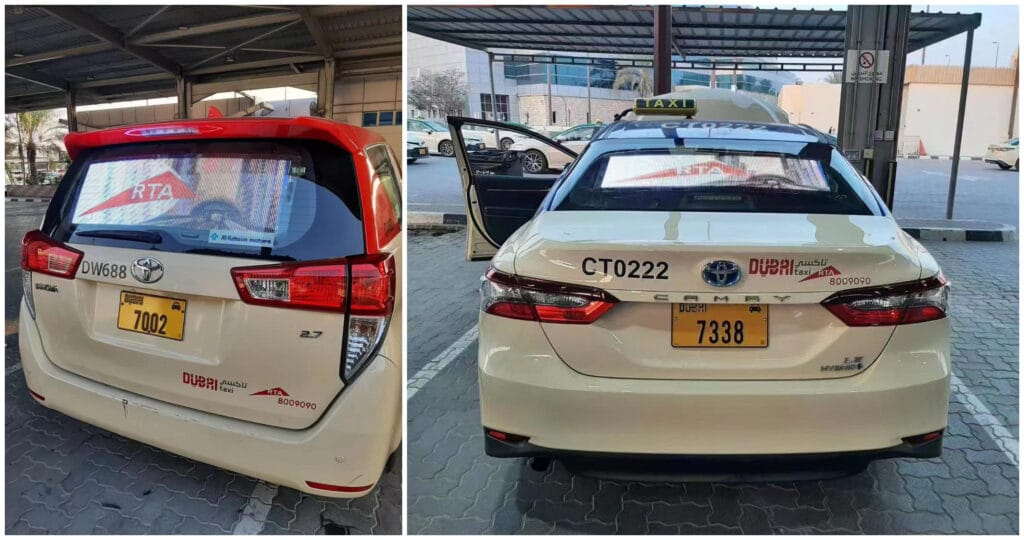

COB Holoview Transparent LED Screen showcases

Why Work with ChinaLEDScreens

Founded in 2009, ChinaLEDScreens is a China-based factory focused on transparent LED display solutions. We support overseas clients with:

• Transparent LED OEM / ODM services
• Complete R&D and manufacturing processes
• Stable supplier chain
• Strict quality control
• Fast technical response
• Strong customer support
• Global compliance-oriented manufacturing

Our product portfolio covers transparent LED screens, LED glass screens, LED film screens, flexible LED film, holographic LED screens, and mesh LED displays, allowing us to support a wide range of custom visual projects for brands, architects, integrators, and commercial operators.

Conclusion

The COB Holoview Transparent LED Screen for Vehicle Car Bus Window is a strong solution for clients who need a high-brightness, low-power, reliable, and highly transparent vehicle window display. It is especially suitable for rear-window applications where advertising performance, driving safety, moisture resistance, and installation convenience must all be balanced together.

With over 5000 nits brightness, 70% transparency, under 1.5kg weight, low power design, 4G centralized control, and the P3.125 shockproof COB structure, this product is well positioned for modern vehicle advertising and fleet media deployment.

For clients looking to build a more durable automotive transparent display solution, this is a practical and commercially strong option from ChinaLEDScreens.
